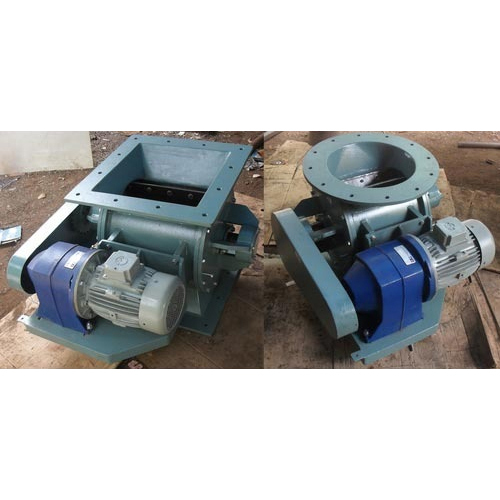

Industrial Rotary Airlock Valve

Name: Industrial Rotary Airlock Valve
Brand: POLLUTION CONTROL ENTERPRISES
Price: 28000 INR
Availability: InStock

Price 28000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Industrial Rotary Airlock Valve Specification

Media
Powder, granules, pellets

Body Material
Stainless Steel

Application
Bulk material handling, dust collection, pneumatic conveying

Port Size
Custom specified by customer (from 100 mm to 600 mm OD)

Dimension (L*W*H)
Depends on capacity; custom sizes available

Working Temperature
-10C to 150C

Pressure Type
Low to medium pressure (ambient to 1 bar)

Usage
Industrial

Material
Stainless Steel

Power
Manual / Pneumatic / Electric (customizable options available)

Pressure
Up to 1 bar

Product Type
Industrial Rotary Airlock Valve

Structure
Rotary airlock with precision-sealed rotor

Size
Customised

Weight
Approx. 30-120 kg (depending on size)

Surface Finish
Bead blasted / mirror / matt finish (as required)

Seal Type
PTFE/ graphite gland seal or mechanical seal

Drive System
Direct coupled gear motor or chain drive

Rotor Type
Closed/ open end rotor, cast or fabricated

Inlet/Outlet Flanges
Drilled to ANSI / DIN / IS standard

Number of Vanes
6, 8, or 10 (as per application need)

Mounting
Horizontal/vertical

Speed
5-30 RPM (adjustable depending on material flow)

Industrial Rotary Airlock Valve Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Industrial Rotary Airlock Valve

Experience top-notch performance with our Industrial Rotary Airlock Valve, a hot-selling solution for bulk material handling. Designed for flexibility, it features 6, 8, or 10 vanes (as per application needs), closed/open end rotors in cast or fabricated construction, and superb sealing with PTFE, graphite gland, or mechanical seals. Customize mounting, finish, drive system and power options to suit your operations. Drilled flanges fit ANSI/DIN/IS standards, while adjustable 5-30 RPM speed ensures precise material flow. Enjoy a noteworthy combination of reliability, robust stainless-steel body, and competitive price cut offers. Perfect for dust collection, pneumatic conveying, and more!

Leading Choice for Diverse Industries

This rotary airlock valve is a top pick for industries such as cement, food processing, chemicals, and pharmaceuticals. Used by manufacturers and service providers alike, it offers distinct commercial advantages-such as minimal air leakage, tailored port sizes, and precision-sealed rotors for efficient bulk material transfer. With its robust stainless-steel build and customizable design, businesses enjoy superb longevity and reduced downtime, making this valve an indispensable component for material handling and dust collection systems.

Flexible Payment & Global Supply Details

Our industrial rotary airlock valve is available at an attractive asking price with optional price cuts for bulk orders. The sale price varies based on customization, ensuring every client gets the best rate for their application. Payment terms include advance payments, letter of credit, or negotiable options. We cater primarily to export markets across Asia, Africa, and the Middle East. Supply ability meets large-scale demands promptly, supporting commercial expansion worldwide with reliable distribution and excellent service.

FAQ's of Industrial Rotary Airlock Valve:

Q: How do I determine the suitable number of vanes for my application?

A: The ideal number of vanes-6, 8, or 10-is chosen based on your material type, required airlock tightness, and flow rate. Consult our technical team to help assess your specific handling needs.

Q: What surface finish options are available and why are they important?

A: You can select bead blasted, mirror, or matt finish. Each finish provides varying resistance to corrosion and ease of cleaning, allowing you to match the valve's durability and hygiene to your industry requirements.

Q: When should I opt for a closed versus open end rotor?

A: Closed end rotors are advisable for sealing fine powders and preventing leakage, while open end rotors facilitate easy discharge of bulkier, non-cohesive materials. Your application dictates the optimum choice.

Q: Where can the rotary airlock valve be installed?

A: Our valve supports horizontal or vertical mounting, suiting integration into dust collection, pneumatic conveying, or bulk handling systems across industrial settings.

Q: What advantages does a stainless-steel body provide?

A: A stainless-steel structure resists corrosion and wear, ensuring top-notch performance and longevity. It is especially beneficial for industries handling abrasive or hygienically sensitive materials.

Q: How is the valve's speed adjusted during operation?

A: The valve's rotational speed (5-30 RPM) is adjustable depending on material flow requirements and is managed through the drive system, whether direct coupled gear motor or chain drive.
